graphql-editor-worker

Graph sorcery, that makes reading GraphQL schemas easier!

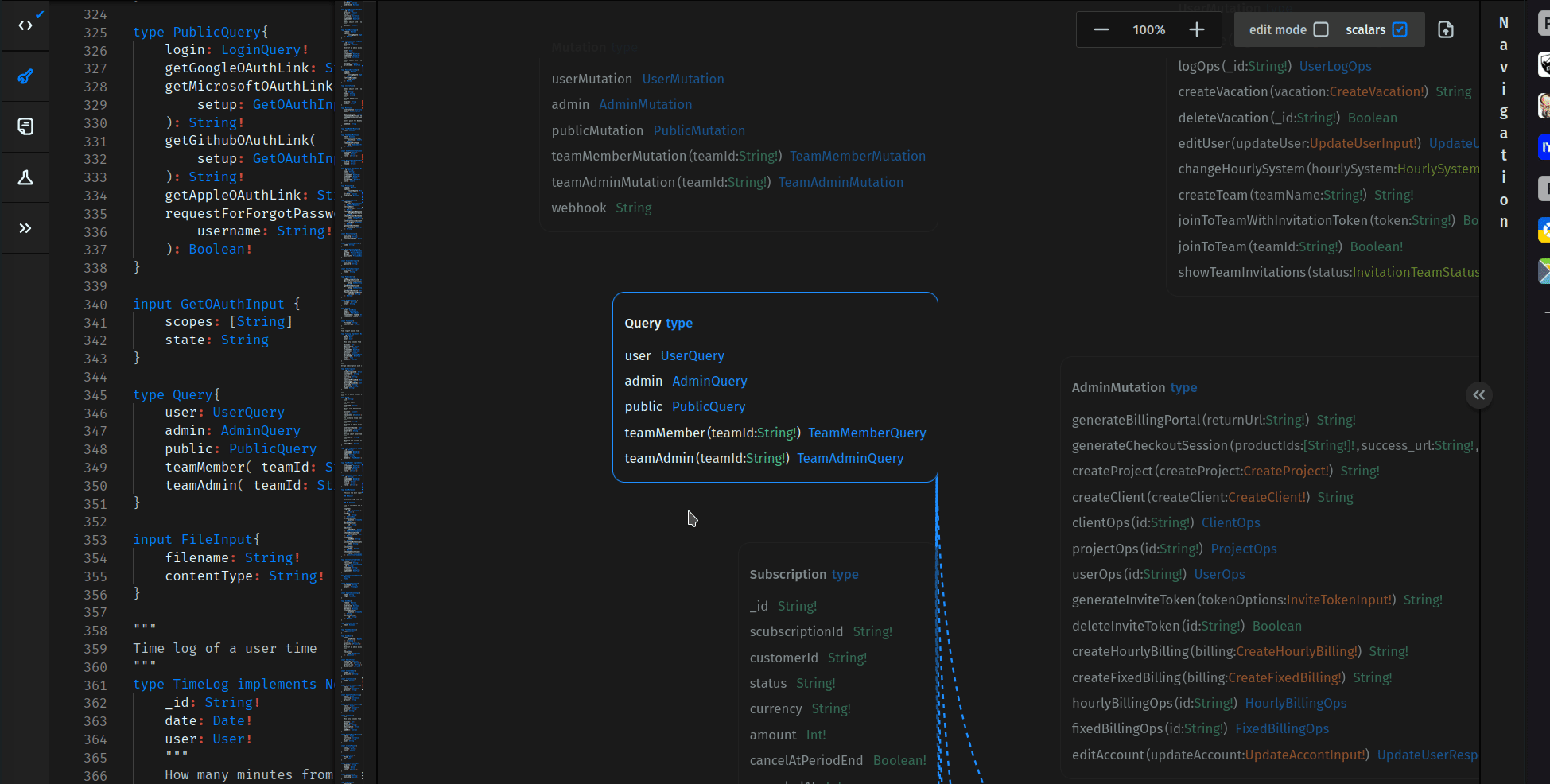

GraphQLEditor makes it easier to understand GraphQL schemas. Create a schema by using visual blocks system. GraphQL Editor will transform them into code.

With GraphQL Editor you can create visual diagrams without writing any code or present your schema in a nice way!

How it works

Create GraphQL nodes and connect them to generate a database schema. You can also use builtin text IDE with GraphQL syntax validation

💡 What is GraphQL Editor?

GraphQL Editor is Graph based system for reading and designing the GraphQL schema

> GraphQL Editor is a GraphQL visualizer and designer. It allows you to create and display GraphQL schemas as a visual graph.

🚀 Features

• Visual GraphQL Editing.
• GraphQL Monaco based IDE
• Selection observer. When node is clicked in visual Graph it automatically scrolls the code to the same node. When cursor is moved in code space
• Automatically bound interfaces. When interface is implemented on type fields of the interface add to the type. If it is already implemented editing interface edits all implementing nodes
• Writing,generating and displaying GraphQL Documentation in markdown. Generating GraphQL docs out of GraphQL descriptions in markdown
• Comparing different versions of GraphQL schemas with special node-sort sorting nodes and its fields to show the real difference in GraphQL Schema on AST omitting line numbers

Table of contents

• How it works
• 💡 What is GraphQL Editor?
• 🚀 Features
• Table of contents
• License
• Installation
• GraphQL SDL Editor
  • Usage
  • GraphQLEditor component props
• GraphQL Gql Editor
  • Usage
  • GraphQLGqlEditor component props
  • GraphQL Embedded Readonly Editor
• Support
• Team
• Underlying Parsing technology
• GraphQL Tutorials
• Authors

License

MIT

Installation

npm i -D worker-loader css-loader file-loader webpack

npm i  graphql-editor react react-dom monaco-editor @monaco-editor/react

GraphQL SDL Editor

Usage

import React, { useState } from 'react';
import { render } from 'react-dom';
import { GraphQLEditor, PassedSchema } from 'graphql-editor';

const schemas = {
  pizza: `
type Query{
	pizzas: [Pizza!]
}
`,
  pizzaLibrary: `
type Pizza{
  name:String;
}
`,
};

export const App = () => {
  const [mySchema, setMySchema] = useState({
    code: schemas.pizza,
    libraries: schemas.pizzaLibrary,
  });
  return (
    <div style="{{">
       {
          setMySchema(props);
        }}
        schema={mySchema}
      /&gt;
    </div>
  );
};

render(, document.getElementById('root'));

GraphQLEditor component props

GraphQLEditor

PassedSchema

ActivePane

"relation" | "diagram" | "diff"

GraphQL Gql Editor

Usage

import React, { useState } from 'react';
import { render } from 'react-dom';
import { GraphQLEditor, PassedSchema } from 'graphql-editor';

const schema = `
type Query{
	pizzas: [Pizza!]
}
`;

export const App = () => {
  const [gql, setGql] = useState('');
  return ( ||
    <div style="{{">
       setGql(gqlString)}
        schema={{ code: schema }}
      /&gt;
    </div>
  );
};

render(, document.getElementById('root'));

GraphQLGqlEditor component props

GraphQLEditor

GraphQL Embedded Readonly Editor

If you only want to view the schema and embed it somewhere in your app you can use our embedded editor for that reason

import React from 'react';
import { EmbeddedGraphQLEditor } from 'graphql-editor';
import * as schemas from '../schema';

export const embeddedEditor = () => {
  return (
    <div style="{{">

    </div>
  );
};

Support

Join our Discord Channel

Team

GraphQL Editor Website

Underlying Parsing technology

Whole graphql-editor parsing stuff is based on underlying zeus technology.

GraphQL Tutorials

Interactive GraphQL Tutorial

GraphQL Blog

Authors

• Artur Czemiel
• GraphQL Editor
• Aexol
